100 vs. 200 Amp Service: Signs Your San Antonio Home Needs a Panel Upgrade

Most San Antonio homeowners never think about their electrical panel until a breaker trips for the third time in a week, or an electrician mentions it while quoting an EV charger or a standby generator. Then the questions start. Is 100 amps enough? Do I need 200? Is the panel unsafe, or just full?

This guide sorts the warning signs into two groups: signs of a safety problem that needs prompt attention, and signs that the panel is simply out of room for what you want to add. It then explains how an electrician decides between a repair, a subpanel and a full service upgrade, and what a service change involves in San Antonio.

What 100 amp and 200 amp service actually mean

The amp rating describes how much current your electrical service is built to deliver to the house at one time. Common residential sizes are 100 amps and 200 amps. The number is set by every part of the service together: the wires from the utility, the meter base, the main breaker and the panel itself. The service is only as large as its smallest part, so a 200-amp panel fed by 100-amp equipment is still a 100-amp service.

The right size depends on the loads your household actually runs and the equipment you plan to add next. An electrician finds that number with a load calculation.

Warning signs that need an electrician soon

The National Fire Protection Association's electrical safety tip sheet lists the situations where you should call a qualified electrician:

• Frequent problems with blowing fuses or tripping circuit breakers
• A tingling feeling when you touch an electrical appliance
• Discolored or warm wall outlets
• A burning or rubbery smell coming from an appliance
• Flickering or dimming lights
• Sparks from an outlet

None of these proves the panel needs replacing. A tripping breaker may protect an overloaded circuit, a failing appliance or a wiring fault. But each one is a reason to stop resetting, stop adding load and have the system checked. If you smell burning or see scorch marks at the panel, turn off what you safely can and call an electrician before using that circuit again.

Signs the panel is running out of space or capacity

Other signs show up when a home's electrical needs have outgrown the original layout:

• No open breaker spaces. Every slot is filled, so a new circuit for a remodel, a patio or an appliance has nowhere to land.
• Extension cords and power strips doing permanent duty. NFPA says extension cords are intended for temporary use and recommends having a qualified electrician add receptacle outlets instead.
• Lights dip briefly when the air conditioner or another large motor starts. A slight dip at startup can simply reflect a heavy load on a smaller service. Dimming that is new, getting worse or happens without a large load starting belongs in the safety list above, because it can point to a loose connection that an electrician should check promptly.
• An older panel that has never been evaluated. If you do not know the panel's history or how much capacity is left, an evaluation gives you a baseline before you buy new equipment.

Treat these as planning signals. They mean an electrician should check the available space and run a load calculation before another circuit goes in. On their own, they do not mean the panel has to come out.

New loads that raise the capacity question

The most common reason San Antonio homeowners ask about a panel upgrade is a new piece of equipment:

• EV chargers. The Department of Energy's home charging guide says electricians can tell you whether your home has adequate capacity for vehicle charging, that some homes might have insufficient capacity for Level 2 equipment, and that a qualified electrician can add circuits to provide it. See our guide to EV charger installation cost in San Antonio for the planning side.
• Standby generators. The generator, its transfer switch and the panel are designed together. Our guide to hiring an electrician for a generator hookup covers that connection.
• Electric water heaters, including tankless. Switching to electric equipment can add significant load. Compare options in water heater repair vs. replacement.
• Room additions, garage conversions and remodels. New rooms mean new circuits, and kitchens add appliance circuits. Put the panel evaluation into the remodel plan early, so the service matches the finished layout.

How an electrician decides: repair, subpanel or service upgrade

A good evaluation answers three separate questions:

1. Is the existing equipment in sound condition? A damaged breaker or a loose connection may need repair whether or not you upgrade.
2. Is there enough capacity? A load calculation under the National Electrical Code adds up the existing equipment and what you plan to add, and compares the result with the service rating.
3. Is there enough space? A panel can have capacity left but no room for new breakers.

The answers point to different fixes. When the service has capacity left but the panel is out of spaces, a subpanel may solve it. A capacity shortfall points toward a larger service, such as 100 amps to 200 amps. Worn or problem equipment may call for panel replacement at the same size. Ask the electrician to explain which question drove the recommendation.

Older panels worth a closer look

Some panels get attention because of their age or brand rather than their capacity. C.S.W. Power Solutions replaces Federal Pacific and Zinsco panels, along with other equipment that shows wear such as corrosion, scorched breakers or a breaker box that feels hot. If you are buying an older San Antonio home, NFPA recommends having it inspected by a qualified inspector or according to local requirements.

If the inspection report flags the panel, ask for an evaluation that separates safety corrections from optional upgrades. Some findings, such as missing GFCI or AFCI protection, can be addressed at the breaker level. Our San Antonio electrical code planning guide explains those protections.

What a service upgrade involves in San Antonio

Changing a panel or service size is more than a panel swap. Expect these pieces:

• A licensed electrical contractor. The Texas Department of Licensing and Regulation says non-exempt electrical work in Texas must be performed by a licensed person working through a licensed electrical contractor.
• Permits and inspection. The City of San Antonio's residential permits page notes that a project may need several permits, including electrical. Confirm which apply to your address.

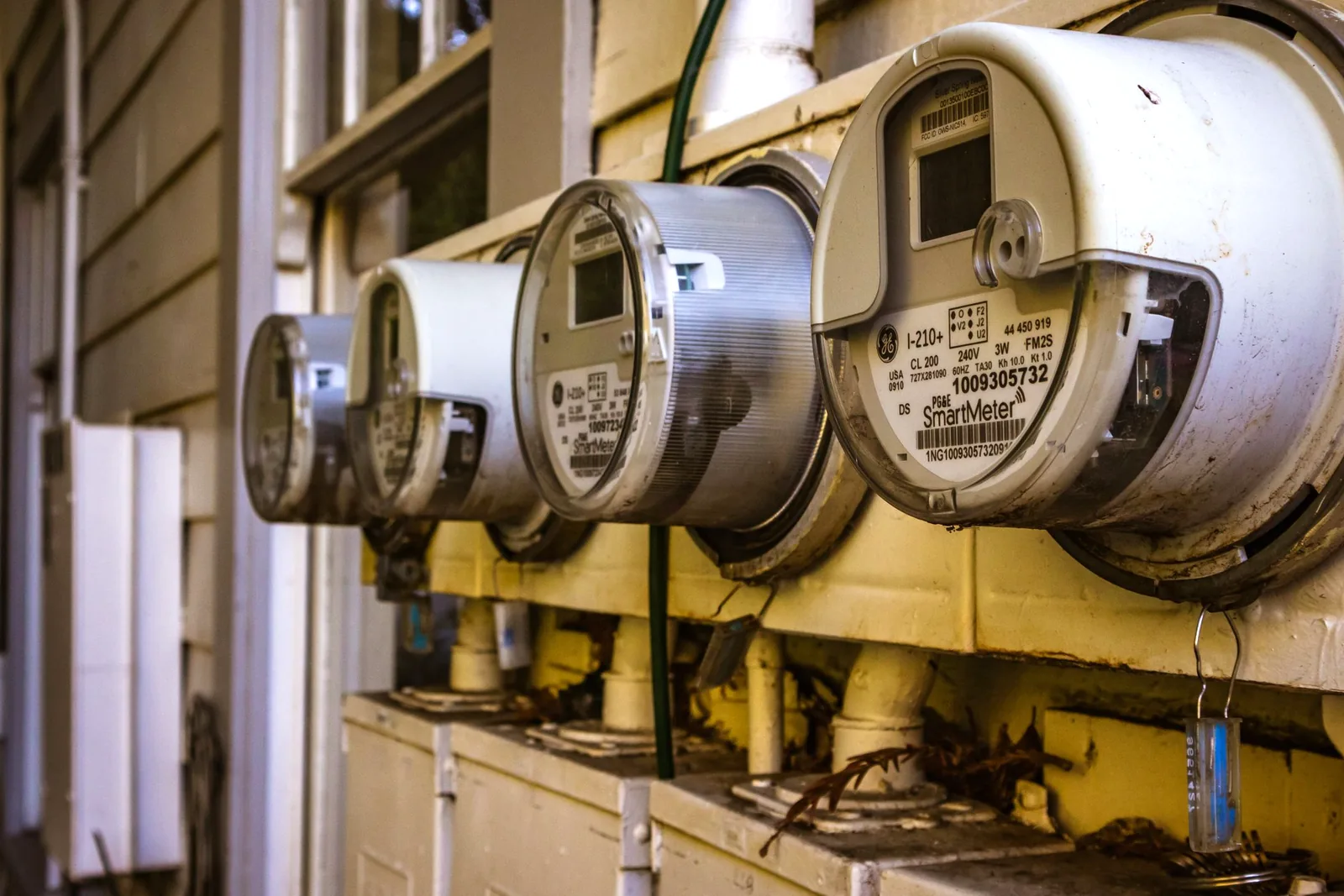

• CPS Energy coordination. CPS Energy's Electric Service Standards list a separate planning contact for upgrades to existing residential services. They also say CPS Energy no longer provides single-phase, self-contained meter sockets to electrical contractors; approved sockets are bought through local distributors.
• A planned power interruption. The house is without power while the service is changed, and timing depends on inspection and utility disconnect and reconnect schedules.
• Possible meter base or weatherhead work. Whether the existing meter base and service entrance can stay depends on the new rating and their condition.

What you can safely check before the visit

You can gather useful information without opening anything:

• Read the main breaker's marked rating and the label inside the panel door. Do not remove the inner cover.
• Note which breakers trip, when they trip and what was running at the time.
• Count open breaker spaces, if any.
• List the equipment you plan to add, with model numbers if you have them.
• Find the age of the home and any past electrical work records.

Leave everything behind the panel cover to a licensed electrician. A panel can hold energized parts even with the main breaker off.

Plan the panel with the rest of the project

Panel work rarely stands alone. An EV charger needs a circuit run, a generator needs a gas line, and a remodel may open walls that need patching afterward. Coordinating those trades is where projects slip. Our guide to drywall repair after electrical work covers the finish side.

C.S.W. Power Solutions is a veteran-owned general contractor with in-house licensed electrical (TECL #31793) and plumbing (RMP #46592). One team can evaluate the panel, plan the new circuits and coordinate the gas, permit and finish work, with a free written, itemized estimate. See our electrical panel upgrade page for details.
